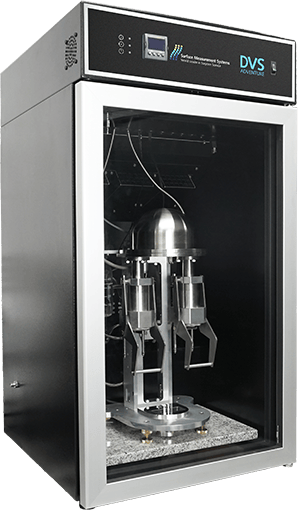

DVS Adventure
Water Vapor Sorption Analyzer

The DVS Adventure is an advanced water vapor sorption analyzer that enables unparalleled accuracy and detailed insight into the sorption properties of solid-state materials.

Employing the Dynamic Vapor Sorption Method, the DVS Adventure contains the cumulative knowledge of 25 years’ worth of Surface Measurement Systems’ excellence in vapor generation, measuring sorption and desorption isotherms over a broad range of humidities and temperatures.

Download Brochure Request a quote

Offering unprecedented temperature stability and humidity performance, the DVS Adventure provides valuable information about your sample’s interactions with water vapor that are critical to the development of new products and processes. Whether trying to determine storage needs, stability, processing, or application performance, the DVS Adventure is used across a range of industries to understand the properties of raw materials.

Water Vapor Sorption Analyzer

See the DVS Adventure in action, and discover what makes it one of the most used sorption instruments in the world.

▶

Humidity Stability over 24 hours

The DVS Adventure contains the cumulative knowledge of 25 years worth of Surface Measurement Systems’ excellence in vapor generation. It truly has the highest level of humidity precision in any instrument we’ve ever produced. Generated humidities are typically within ±0.1%RH of target humidity.
True0™ RH

True0 RH

Surface Measurement System’s DVS gravimetric sorption analyzers are the only instruments of their type offering True0™ RH. Our DVS instruments achieve partial pressures of water as low as 0.0% RH. This is important for hydrates and other compounds that only completely dry below 1% RH and investigation of sorption/desorption at low RH levels.

State-of-the-Art Temperature Performance

The DVS Adventure features an extremely stable single temperature enclosure around the entire instrument allowing vapor generation and delivery to occur at the sample temperature over the entire operational rang of 5-85 °C. Typical stability at 25 °C is ±0.02. This prevents issues with multiple temperature zone condensation, and allows for more accurate and more stable humidity delivery.

Balance Baseline Stability over 24 hours

The DVS Adventure is capable of measuring mass changes at a resolution of 0.1ug with peak to peak noise of less than or equal to 0.2 ug. The Surface Measurement Systems Ultrabalance™ is unrivaled in its precision and accuracy.

◀

▶

Benefits

Applications

Specifications

Schematics

Benefits

Key measuring capabilities:

Water sorption and desorption isotherms
In-situ sample drying to 200 ºC
Multiple sorption/desorption and sample drying cycles
Sample masses from 1mg to 5000mg
Diffusion and permeability measurements

Key hardware benefits:

Open stand design enabling easy access to sample pan
Stainless steel stand to minimize static electrical charging
Wide operational temperature range (5-85 ºC) and uniform temperature enclosure
Next-generation control and evaluation software for the most advanced experimental design and data analysis
Capability to upgrade to organic vapors and gasses
Optional IR, Raman, and Video imaging

Applications

Moisture sorption with very low uptake
Moisture sorption kinetics and Isotherms
Diffusion coefficients
Hydration and dehydration studies
Moisture diffusion into electronic pastes
Determination of Amorphous Content
Humidity-induced phase transitions
DVS Video Imaging – Phase Changes

Specifications

Temperature (Temperature-controlled enclosure)

Control range: 5 – 85 °C
Control precision: ±0.1 °C (from 5 – 60 ºC, 60 – 85 °C ±0.2 °C)
Enclosure also provides anti-condensation protection

High-temperature preheater for sample curing/drying/preconditioning

Delivers local sample temperatures of up to 200 °C
Heating ramp rates: up to 5 °C / min
Sensors: Pt-100 thermocouple type K

Mass measurement

Ultrabalance Low Mass

Maximum load: 1000 mg
Mass change: ±150 mg
Resolution: 0.01 μg
Balance noise: ≤ 0.3 μg

Ultrabalance High Mass

Maximum load: 5000 mg
Mass change: ±1000 mg
Resolution: 0.1 μg
Balance noise: ≤ 3 μg

Adventure stand

Manifold: stainless steel
Seals: Viton
Tubing: 1/4 inch stainless steel

Relative humidity generation and measurement

High accuracy digital mass flow controllers for delivering gases with humidity control of less than ±0.1%RH
Relative humidity sensor with measurement precision of ±0.1%RH
Relative humidity range generated from 0 to 98% (dependent on temperature)

Range: 5 to 60oC – 0 to 98% RH, 60 to 85oC – 0 to 85% RH

Accuracy*: 5 to 60oC ± 0.5% RH, 60 to 85oC ± 1% RH*

*Optional configuration (heated reservoir) for long-term 85oC, 85% RH operation.

Computer hardware and software

The system is fully automated and controlled by purpose-built software. Data can be analyzed in real-time using analysis software.

1.1 DVS control software

Multiple-method protocols incorporating sample pre-heating and temperature changes during an experiment
Ramp or step changes in relative humidity
Humidity or temperature stages may be based on fixed-time or user-defined dm/dt criteria
Isotherm and isoactivity experiments
Experiments may include half, full or multiple partial pressure, or temperature cycles
Create sequences that allow multiple experiments to be executed one after another
Simple data export and analysis can be performed without interruption of experiments
Network data backup functionality is also included

1.2 DVS data analysis suite

Plot manager
Isotherm manager
Permeability and diffusion
Kinetics information
Heat of sorption
Tg determinations
Amorphous content

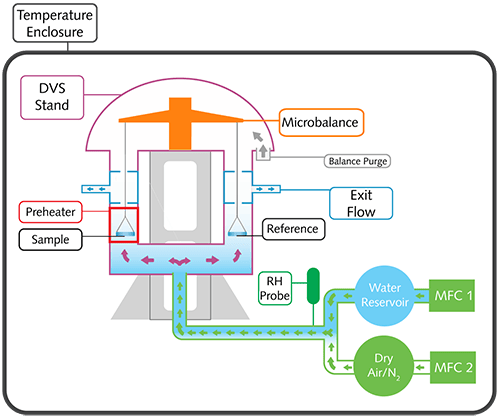

Schematics
