Sorption Overview Series #4
Static vs Dynamic Sorbate Introduction
A common distinction in sorption methods is whether the probe molecules are dosed in single precise amounts (static introduction) or whether they are flowing around/through the sample (dynamic introduction).
In the fourth entry in our Sorption Overview series, we compare static and dynamic methods, exploring how they function, and what benefits are offered by each approach.
Static Introduction (dosing)

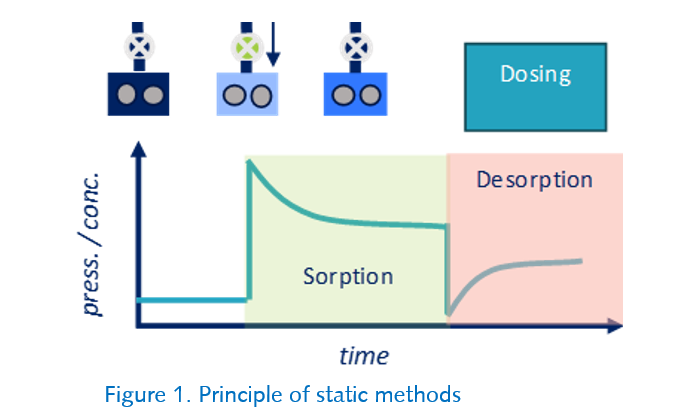

Many sorption measurements are conducted in a static, or equilibrium mode. In this process, the gas is dosed into a sample chamber containing the sorbent. The chamber is then sealed, and the system is equilibrated. The method is best suited to adsorbates with fast kinetics (e.g., N2 but not H2O). Both pure and carrier working modes are possible. Diffusion coefficients and sorption kinetics are difficult to record as the pressure/concentration changes throughout the sorption process. Also, if the system pressure changes for various reasons besides adsorption, more commonly due to vacuum leaks or temperature changes, this may lead to errors in measurements, especially at low partial pressures.
Dynamic Introduction (flowing)

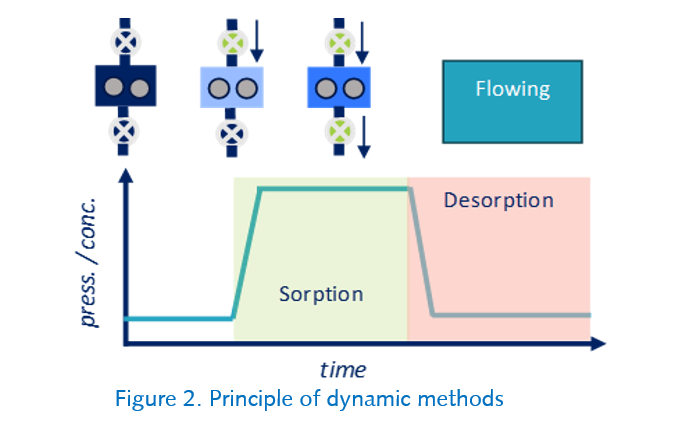

In the dynamic method, a continuous flow of gas or vapor is passed over the sample. The method controls both the upstream rates of entry and the downstream exit rate, effectively controlling both the pressure/concentration and flow rate of the adsorbate in the chamber. It also helps to overcome some boundary layer diffusional barriers, by ensuring little to no concentration gradients around the sample. Both pure and carrier introduction is possible.
Note: The SMS DVS, SMS iGC-SEA and SMS BTA systems operate in dynamic mode, while the SMS DVS Vacuum can perform both static and dynamic introduction.
Check back soon for #5 in the series!
Check back soon to catch the next in our blog series: Volumetric, gravimetric, and chromatographic methods.
In the meantime, benefit from a range of free education sorption material with our online eLearning Portal: The Sorption Academy.
Simply use the link below to access this free of charge.
Sorption Overview Series #4
Static vs Dynamic Sorbate Introduction
A common distinction in sorption methods is whether the probe molecules are dosed in single precise amounts (static introduction) or whether they are flowing around/through the sample (dynamic introduction).
In the fourth entry in our Sorption Overview series, we compare static and dynamic methods, exploring how they function, and what benefits are offered by each approach.
Pure Probe IntroductionHere, a pure gas or vapor is put into contact with the sample. A vacuum is first created around the material, removing any residual atmosphere. Then the probe of interest is introduced, and its total pressure controlled. |
Static Introduction (dosing)
Many sorption measurements are conducted in a static, or equilibrium mode. In this process, the gas is dosed into a sample chamber containing the sorbent. The chamber is then sealed, and the system is equilibrated. The method is best suited to adsorbates with fast kinetics (e.g., N2 but not H2O). Both pure and carrier working modes are possible. Diffusion coefficients and sorption kinetics are difficult to record as the pressure/concentration changes throughout the sorption process. Also, if the system pressure changes for various reasons besides adsorption, more commonly due to vacuum leaks or temperature changes, this may lead to errors in measurements, especially at low partial pressures.
Check back soon for #5 in the series!
Check back soon to catch the next in our blog series: Volumetric, gravimetric, and chromatographic methods.
In the meantime, benefit from a range of free education sorption material with our online eLearning Portal: The Sorption Academy.
Simply use the link below to access this free of charge.
Sorption Overview Series #4
Static vs Dynamic Sorbate Introduction
A common distinction in sorption methods is whether the probe molecules are dosed in single precise amounts (static introduction) or whether they are flowing around/through the sample (dynamic introduction).
In the fourth entry in our Sorption Overview series, we compare static and dynamic methods, exploring how they function, and what benefits are offered by each approach.
The Role of Temperature in SorptionThe average kinetic energy of all molecules in the system is unambiguously defined by temperature. Temperature is represented in Kelvin (K, the SI unit), degree Celsius (°C) or degree Fahrenheit (°F). Although measuring temperature accurately and ensuring its homogeneity throughout an instrument can be challenging, this discussion will focus on the relationship between temperature and kinetic energy. On the other hand, the number of target probe molecules which interact with the material at any point can be reported in a variety of ways, with terms encountered such as pressure, absolute/partial pressure, relative pressure, humidity, water activity, volume/molar fraction and concentration, etc. The variety of terms is a source of confusion and will be discussed in more detail. |
Pure Probe IntroductionHere, a pure gas or vapor is put into contact with the sample. A vacuum is first created around the material, removing any residual atmosphere. Then the probe of interest is introduced, and its total pressure controlled. |
Critical Points and Relative Pressure
Above the critical point of a compound, there is no distinction between a liquid and gas state, which means that there is no vapor pressure. Such gases (for example N2 and CH4 at room temperature) cannot be represented in a relative pressure.
To summarize all the above terminology, we end with an example in Figure 1.
Check back soon for #5 in the series!
Check back soon to catch the next in our blog series: Volumetric, gravimetric, and chromatographic methods.
In the meantime, benefit from a range of free education sorption material with our online eLearning Portal: The Sorption Academy.
Simply use the link below to access this free of charge.
Sorption Overview Series #4
Static vs Dynamic Sorbate Introduction
A common distinction in sorption methods is whether the probe molecules are dosed in single precise amounts (static introduction) or whether they are flowing around/through the sample (dynamic introduction).
In the fourth entry in our Sorption Overview series, we compare static and dynamic methods, exploring how they function, and what benefits are offered by each approach.
The Role of Temperature in SorptionThe average kinetic energy of all molecules in the system is unambiguously defined by temperature. Temperature is represented in Kelvin (K, the SI unit), degree Celsius (°C) or degree Fahrenheit (°F). Although measuring temperature accurately and ensuring its homogeneity throughout an instrument can be challenging, this discussion will focus on the relationship between temperature and kinetic energy. On the other hand, the number of target probe molecules which interact with the material at any point can be reported in a variety of ways, with terms encountered such as pressure, absolute/partial pressure, relative pressure, humidity, water activity, volume/molar fraction and concentration, etc. The variety of terms is a source of confusion and will be discussed in more detail. |
Check back soon for #5 in the series!
Check back soon to catch the next in our blog series: Volumetric, gravimetric, and chromatographic methods.
In the meantime, benefit from a range of free education sorption material with our online eLearning Portal: The Sorption Academy.
Simply use the link below to access this free of charge.
