Overview

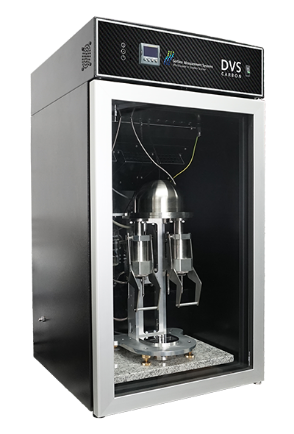

The DVS Carbon is the world’s first high-performance, gravimetric sorption analyzer designed for advanced carbon dioxide capture experiments. Engineered specifically for carbon capture, utilization, and gas storage studies, it enables accurate single and multicomponent COâ‚‚ analysis using a high-resolution gravimetric balance.Â
Whether you’re working in material development, adsorption science, or environmental research, the DVS Carbon provides the control, sensitivity, and flexibility required for COâ‚‚ sorption studies.Â
Top-flight Benefits (KSPs)
The DVS Carbon has powerful capabilities for precise and reliable materials characterization for carbon capture, utilization, and gas storage studies.
Measure COâ‚‚ adsorption capacity, kinetics, and equilibrium behavior in porous materials such as MOFs, zeolites, and activated carbons with high gravimetric sensitivity.
With a carefully calibrated mixing system, the DVS Carbon independently controls the CO2 and water concentration, enabling complex sorption programs to be created with controlled changes in concentration and temperature.
Perform experiments which mimic different types of carbon capture conditions: co-sorption experiments with 400 ppm CO2 with 0-98% relative humidity at 25°C to evaluate DAC materials, or experiments with 15% CO2 vol% at a variety of humidities at high
Study adsorption/desorption cycles and regeneration behavior to understand material stability, working capacity, and long-term performance.
Gravemetric Carbon Dioxide Sorption Analyzer
TEMPERATURE RANGE:
TEMPERATURE STABILITY :
MASS RESOLUTION :
MAX LOAD:
RH RANGE:
VAPOR/GAS CAPABILITY :
TEMPERATURE RANGE:
5 °C to 450 °C
TEMPERATURE STABILITY :
± 0.05 °C over 6 hours
MASS RESOLUTION :
±0.1% RH
MAX LOAD:
1g (low mass) / 5g (high mass)
RH RANGE:
0%-98% RH
VAPOR/GAS CAPABILITY :
Water, COâ‚‚, Competitive (Dual)
World-class gravimetric vapor sorption analyzers and inverse gas chromatography instruments designed for precision.
